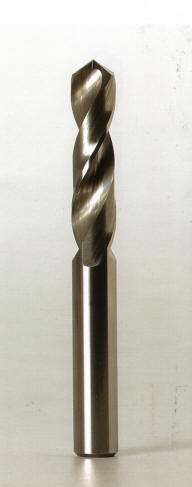

ASTOOL KARBÜR NORMAL MATKAP UCU |
|
Kaplamasız - SBS Serisi |
|
|
 |
|
Kod |
Teknik Özellikler |
|
Kılavuz Ölçüleri |
Ağız Çapı |
Helis Boyu |
Şaft Çapı |
Tam Boy |
|

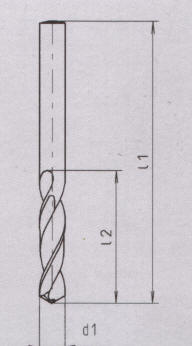

d1 m7 |
L2 |
d2 h6 |
L1 |
|
063 |
|
6,3 |
31 |
6,3 |
70 |
|
065 |
9/16" |
6,5 |
31 |
6,5 |
70 |
|
066 |
5/16" UNC |
6,6 |
31 |
6,6 |
70 |
|
067 |
|
6,7 |
31 |
6,7 |
70 |
|
068 |
MB |
6,8 |
34 |
6,8 |
74 |
|
069 |
|
6,9 |
34 |
6,9 |
74 |
|
070 |
|
7,0 |
34 |
7,0 |
74 |
|
071 |
|
7,1 |
34 |
7,1 |
74 |
|
072 |
|
7,2 |
34 |
7,2 |
74 |
|
073 |
|
7,3 |
34 |
7,3 |
74 |
|
075 |
|
7,5 |
34 |
7,5 |
74 |
|
076 |
|
7,6 |
37 |
7,6 |
79 |
|
080 |
|
8,0 |
37 |
8,0 |
79 |
|
083 |
|
8,3 |
37 |
8,3 |
79 |
|
085 |
M10 |
8,5 |
37 |
8,5 |
79 |
|
090 |
|
9,0 |
40 |
9,0 |
84 |
|
091 |
|
9,1 |
40 |
9,1 |
84 |
|
095 |
|
9,5 |
40 |
9,5 |
84 |
|
097 |
|
9,7 |
43 |
9,7 |
89 |
|
100 |
|
10,0 |
43 |
10,0 |
89 |
|
102 |
M12 |
10,2 |
43 |
10,2 |
89 |
|
105 |
|
10,5 |
43 |
10,5 |
89 |
|
110 |
|
11,0 |
47 |
11,0 |
95 |
|
115 |
|
11,5 |
47 |
11,5 |
95 |
|
120 |
M14 |
12,0 |
51 |
12,0 |
102 |
|
125 |
|
12,5 |
51 |
12,5 |
102 |
|
130 |
|
13,0 |
51 |
13,0 |
102 |
|
135 |
|
13,5 |
51 |
13,5 |
102 |
|
140 |
M16 |
14,0 |
54 |
14,0 |
107 |
|
145 |
|
14,5 |
54 |
14,5 |
107 |
|
150 |
|
15,0 |
56 |
15,0 |
111 |
|
155 |
|
15,5 |
56 |
15,5 |
111 |
|
160 |
|
16,0 |
58 |
16,0 |
115 |
|
175 |
M20 |
17,5 |
62 |
17,5 |
123 |
|
180 |
|
18,0 |
62 |
18,0 |
123 |
|
200 |
|
20,0 |
66 |
20,0 |
131 |
SBS Serisi / Series |
| |
|
| |
|
|
|
|
|
