TR Markalı Badem Tipi Yataklar |
| UCFL200 |
|
| Unit No |
Shaft Dia |

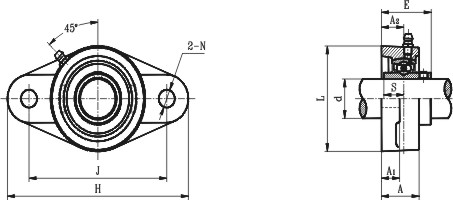

Dimensions(mm) |
Bolt Size |
Bearing No. |
Housing No. |
Mass(kg) |
Available |
| d |
H |
L |
L |
A2 |
A1 |
A |
E |
N |
S |
A4 |
| (in.) |
(mm) |
N |
| UCFL211-34 |
2-1/8 |
-- |
224 |
184 |
130 |
25 |
18 |
48 |
58.4 |
18 |
22.2 |
64 |
M16 |
UC211-34 |
FL211 |
3.10 |
19 |
| UCFL211-32 |
2 |
-- |
224 |
184 |
130 |
25 |
18 |
48 |
58.4 |
18 |
22.2 |
64 |
M16 |
UC211-32 |
FL211 |
3.10 |
19 |
| FCFL211-34 |
2-1/8 |
-- |
224 |
184 |
130 |
25 |
18 |
48 |
58.4 |
18 |
22.2 |
64 |
M60 |
UC211-34 |
FL211 |
3.10 |
19 |
| UCFL211-34 |
2-1/8 |
-- |
224 |
184 |
130 |
25 |
18 |
48 |
58.4 |
18 |
22.2 |
64 |
M16 |
UC211-34 |
FL211 |
3.10 |
19 |
| UCFL211 |
-- |
55 |
224 |
184 |
130 |
25 |
18 |
48 |
58.4 |
18 |
22.26 |
64 |
M16 |
UC211 |
FL211 |
3.10 |
19 |
| UCFL211-35 |
2-3/16 |
-- |
224 |
184 |
130 |
25 |
18 |
48 |
58.4 |
18 |
22.2 |
64 |
M16 |
UC211-35 |
FL211 |
3.10 |
1.9 |
| UCFL212-36 |
2-1/4 |
-- |
250 |
202 |
140 |
29 |
18 |
48 |
68.7 |
18 |
25.4 |
74.5 |
M16 |
UC212-36 |
FL212 |
4.0 |
23 |
| UCFL201S |
-- |
12 |
99 |
76.5 |
57 |
15 |
11 |
24.5 |
30.9 |
11.5 |
11.5 |
-- |
M10 |
UC201S |
FL203 |
0.45 |
-- |
| UCFL201-8S |
1/2 |
-- |
99 |
76.5 |
57 |
15 |
11 |
24.5 |
30.9 |
11.5 |
11.5 |
-- |
M10 |
UC201-8S |
FL203 |
0.45 |
-- |
| UCFL202S |
-- |
15 |
99 |
76.5 |
57 |
15 |
11 |
24.5 |
30.9 |
11.5 |
11.5 |
-- |
M10 |
UC202S |
FL203 |
0.45 |
-- |
| UCFL202-10S |
5/8 |
|
99 |
76.5 |
57 |
15 |
11 |
24.5 |
30.9 |
11.5 |
11.5 |
-- |
M10 |
U202-10S |
FL203 |
0.45 |
-- |
| UCFL203C |
-- |
17 |
99 |
76.5 |
57 |
15 |
11 |
24.5 |
30.9 |
11.5 |
11.5 |
-- |
M10 |
UC203S |
FL203 |
0.45 |
-- |
| UCFL203-11S |
11/16 |
-- |
99 |
76.5 |
57 |
15 |
11 |
24.5 |
30.9 |
11.5 |
11.5 |
-- |
M10 |
UC203-11S |
FL203 |
0.45 |
-- |
| UCFL201 |
-- |
12 |
113 |
90 |
60 |
15 |
11 |
25.5 |
33.3 |
11.5 |
12.7 |
37.5 |
M10 |
UC201 |
FL204 |
0.51 |
12 |
| UCFL201-8 |
1/2 |
-- |
113 |
90 |
60 |
15 |
11 |
25.5 |
33.3 |
11.5 |
12.7 |
37.5 |
M10 |
UC201-8 |
FL204 |
0.51 |
12 |
| UCFL202 |
-- |
15 |
113 |
90 |
60 |
15 |
11 |
25.5 |
33.3 |
11.5 |
12.7 |
37.5 |
M10 |
UC202 |
FL204 |
0.51 |
12 |
| UCFL202-10 |
5/8 |
-- |
113 |
90 |
60 |
15 |
11 |
25.5 |
33.3 |
11.5 |
12.7 |
37.5 |
M10 |
UC202-10 |
FL204 |
0.51 |
12 |
| UCFL203 |
-- |
17 |
113 |
90 |
60 |
15 |
11 |
25.5 |
33.3 |
11.5 |
12.7 |
37.5 |
M10 |
UC203 |
FL204 |
0.51 |
12 |
| UCFL203-11 |
11/16 |
-- |
113 |
90 |
60 |
15 |
11 |
25.5 |
33.3 |
11.5 |
12.7 |
37.5 |
M10 |
UC203-11 |
FL204 |
0.51 |
12 |
| UCFL204-12 |
3/4 |
-- |
113 |
90 |
60 |
15 |
11 |
25.5 |
33.3 |
11.5 |
12.7 |
37.5 |
M10 |
UC204-12 |
FL204 |
| | | | | | | |
