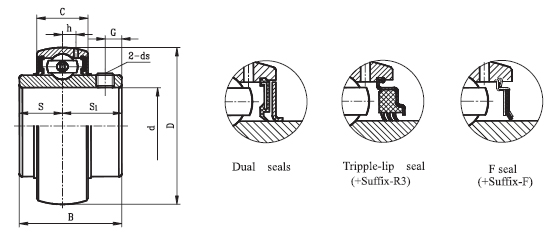

Bearing No.	Shaft Dia.		Dimensions(mm)/(in.)								Basicload rating(N)		Mass(kg)
	d		D	B	C	S	S1	G	h	ds	Dynamic Cr	Static Cor
	(in.)	(mm)
UCX05-14	7/8	--	62	38.1	19	15.9	22.2	6	5	1/4-28UNF	19500	11200	0.42
UCX05-15	15/16	--	62	38.1	19	15.9	22.2	6	5	1/4-28UNF	19550	11200	0.40
UCX05	--	25	62	38.1	19	15.9	22.2	6	5	M6X1	19500	11200	0.39
UCX05-16	1	--	62	38.1	19	15.9	22.2	6	5	1/4-28UNF	19500	11200	0.38
UCX06-18	1-1/8	--	72	42.9	20	17.5	25.4	6.5	5.8	5/16-24UNF	25700	15200	0.58
UCX06	--	30	72	42.9	20	17.5	25.4	6.5	5.8	M8X1	25700	15200	0.58
UCX06-19	1-3/16	--	72	42.9	20	17.5	25.4	6.5	5.8	5/16-24UNF	25700	15200	0.58
UCX06-20	1-1/4	--	72	42.9	20	17.5	25.4	6.5	5.8	5/16-24UNF	25700	15200	0.55
UCX07-22	1-3/8	--	80	49.2	21	19	30.2	8	6.3	5/16-24UNF	29600	18200	0.75
UCX07	--	35	80	49.2	21	19	30.2	8	6.3	M8X1	29600	18200	0.75
UCX07-23	1-7/16	--	80	49.2	20	17.5	25.4	6.5	5.8	5/16-24UNF	29600	18200	0.72
UCX08-24	1-1/2	--	85	49.2	22	19	30.2	8	6.8	5/16-24UNF	31850	20800	0.87
UCX08-25	1-9/16	--	85	49.2	22	19	30.2	8	6.8	5/16-24UNF	31850	20800	0.87
UCX08	--	40	85	49.2	22	19	30.2	8	6.8	M8X1	31850	20800	0.83
UCX09-26	1-5/8	--	90	51.6	23	19	32.6	9	6.5	3/8-24UHF	35100	23200	1.10
UCX09-27	1-11/16	--	90	51.6	23	19	32.6	9	6.5	3/8-24UNF	35100	23200	1.01
UCX09-28	1-3/4	--	90	51.6	23	19	32.6	9	6.5	3/8-24UNF	35100	23200	0.97
UCX09	--	45	90	51.6	23	19	32.6	9	6.5	M10X1.25	35100	23200	0.95
UCX10-30	1-7/8	--	100	55.6	25	22.2	33.4	9	7.2	3/8-24UNF	43550	29200	1.43
UCX10-31	1-15/16	--	100	55.6	25	22.2	33.4	9	7.2	3/8-24UNF	43550	29200	1.32
UCX10	--	50	100	55.6	25	22.2	33.4	9	7.2	M10X1.25	43550	29200	1.29
UCX10-32	2	--	100	55.6	25	22.2	33.4	9	7.2	3/8-24UNF	43550	29200	1.26
UCX11-34	2-1/8	--	110	65.1	27	25.4	39.7	10.5	8.2	3/8-24UNF	47800	32800	1.95
UCX11	--	55	110	65.1	27	25.4	39.7	10.5	8.2	M10X1.25	47800	32800	1.80
UCX11-35	2-3/16	--	110	65.1	27
