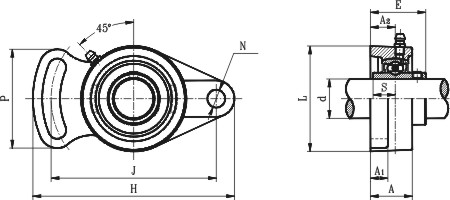

Unit No.	Shaft Dia.		Dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass(kg)
	d		H	J	L	P	A1	A2	A	N	E	S
	(in.)	(mm)
UCFA202	--	15	98	78	59	50	11	13.74	24	10	32.04	12.7	M8	UC202	FA204	0.48
UCFA202-10	5/8	--	98	78	59	50	11	13.74	24	10	32.04	12.7	M8	UC202-10	FA204	0.48
UCFA203	--	17	98	78	59	50	11	13.74	24	10	32.04	12.7	M8	UC203	FA204	0.48
UCFA203-11	11/16	--	98	78	59	50	11	13.74	24	10	32.04	12.7	M8	UC203-11	FA204	0.48
UCFA204-12	3/4	--	98	78	59	50	11	13.74	24	10	32.04	12.7	M8	UC204-12	FA204	0.48
UCFH204	--	20	98	78	59	50	11	13.74	24	10	32.04	12.7	M8	UC204	FA204	0.48
UCFA205-14	7/8	--	122	96	70	64	13	16	27	12	35.7	14.3	M8	UC205-14	FA205	0.69
UCFA205-15	15/16	--	122	96	70	64	13	16	27	12	35.7	14.3	M8	UC205-15	FA205	0.69
UCFA205	--	25	122	96	70	64	13	16	27	12	35.7	14.3	M8	UC205	FA205	0.69
UCFA205-16	1	--	122	96	70	64	13	16	27	12	35.7	14.3	M8	UC205-16	FA205	0.69
UCFA206-18	1-1/8	--	141	115	80	68	14	18	30.5	12	40.2	15.9	M8	UC206-18	FA206	1.0
UCFA206	--	30	141	115	80	68	14	18	30.5	12	40.2	15.9	M8	UC206	FA206	1.0
UCFA206-19	1-3/16	--	141	115	80	68	14	18	30.5	12	40.2	15.9	M8	UC206-19	FA206	1.0
UCFA206-20	1-1/4	--	141	115	80	68	14	18	30.2	12	40.2	15.9	M8	UC206-20	FA206	1.0
UCFA207-20	1-1/4	--	155	128	92	75	15	19	33	13	44.4	17.5	M8	UC207-20	FA207	1.5
UCFA207-21	1-5/16	--	155	128	92	75	15	19	33	13	44.4	17.5	M8	UC207-21	FA207	1.5
UCFA207-22	1-3/8	--	155	128	92	75	15	19	33	13	44.4	17.5	M8	UC207-22	FA207	1.5
UCFA207	--	35	155	128	92	75	15	19	33	13	44.4	17.5	M8	UC207	FA207	1.5
UCFA207-23	1-7/16	--	155	128	92	75	15	19	33	13	44.4	17.5	M8	UC207-23	FA207	1.5
UCFA208-24	1-1/2	--	171	144	105	84	14	21	38	13	51.2	19	M10	UC208-24	FA208	1.8
UCFA208-25	1-9/16	--	171	144	105	84	14	21	38	13	51.2	19	M10	UC208-25	FA208	1.8
UCFA208		40	171	144	105	84	14	21	38	13	51.2	19	M10	UC208	FA208	1.8
UCFA209-26	1-5/8	--	178	146	108	88	16
