TR Markalı Köprü Tipi Yataklar |
| SAP200 |
|
| Unit No. |
Shaft Dia. |

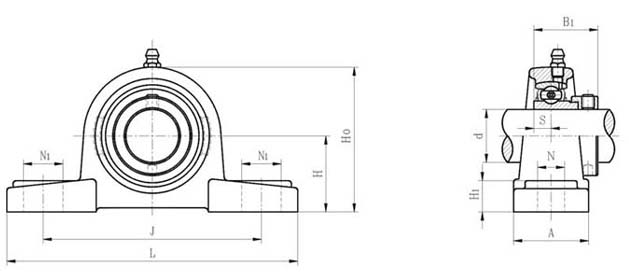

Dimensions(mm) |
Bolt Size |
Hearing No. |
Housing No. |
Mass(kg) |
Available |
| d |
H |
L |
J |
A |
N |
N1 |
H1 |
H0 |
S |
B1 |
| (in.) |
(mm) |
N |
N1 |
| SAP212--36G |
2--1/4 |
-- |
69.9 |
238 |
186 |
66 |
19 |
25 |
24 |
137 |
12 |
49.3 |
M16 |
SA212--36G |
P212 |
5.16 |
-- |
-- |
| SAP201G |
-- |
12 |
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6.5 |
28.6 |
M10 |
SA201 |
P203 |
0.65 |
-- |
-- |
| SAP201--8G |
1/2 |
-- |
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6.5 |
28.6 |
M10 |
SA201--8G |
P203 |
0.65 |
-- |
-- |
| SAP202G |
-- |
15 |
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6.5 |
28.6 |
M10 |
SA202G |
P203 |
0.65 |
-- |
-- |
| SAP202--10G |
5/8 |
-- |
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6.5 |
28.6 |
M10 |
SA202--10G |
P203 |
0.65 |
-- |
-- |
| SAP203G |
-- |
17 |
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6.5 |
28.6 |
M10 |
SA203G |
P203 |
0.65 |
-- |
-- |
| SAP203--11G |
11/16 |
-- |
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6.5 |
28.6 |
M10 |
SA203--11G |
P203 |
0.65 |
-- |
-- |
| SAP204--12G |
3/4 |
-- |
33.3 |
127 |
96 |
37 |
13 |
16 |
14 |
63.8 |
7.5 |
30.9 |
M10 |
SA204--12G |
P204 |
0.65 |
13 |
19 |
| SAP204G |
-- |
20 |
33.3 |
127 |
96 |
37 |
13 |
16 |
14 |
63.8 |
7.5 |
30.9 |
M10 |
SA204G |
P204 |
0.65 |
13 |
19 |
| SAP212G |
-- |
60 |
69.9 |
238 |
186 |
66 |
19 |
25 |
24 |
137 |
12 |
49.3 |
M16 |
SA212G |
P212 |
5.16 |
-- |
-- |
| SAP205--14G |
7/8 |
-- |
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
69.5 |
7.5 |
30.9 |
M10 |
SA05--14G |
P205 |
0.85 |
-- |
-- |
| SAP205--15G |
15/16 |
-- |
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
69.5 |
7.5 |
30.9 |
M10 |
SA205--15G |
P205 |
0.85 |
-- |
-- |
| SAP205G |
-- |
25 |
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
69.5 |
7.5 |
30.9 |
M10 |
SA205G |
P205 |
0.85 |
-- |
-- |
| SAP205--16G |
1 |
-- |
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
69.5 |
7.5 |
30.9 |
M10 |
SA205--16G |
P205 |
0.85 |
-- |
-- |
| SAP206--18G |
1--1/8 |
-- |
42.9 |
160 |
121 |
44 |
14 |
19 |
16 |
82 |
9 |
35.7 |
M12 |
SA206--18G |
P206 |
1.4 |
17 |
21 |
| SAP206G |
-- |
30 |
42.9 |
160 |
121 |
44 |
14 |
19 |
16 |
82 |
9 |
35.7 |
M12 |
SA206--19G |
P206 |
1.4 |
17 |
21 |
| SAP206--19G |
1--3/16 |
-- |
42.9 |
160 |
121 |
44 |
14 |
19 |
16 |
82 |
9 |
35.7 |
M12 |
SA206--19G |
P206 |
1.4 |
17 |
21 |
| SAP206--20G |
1--1/4 |
-- |
42.9 |
160 |
121 |
44 |
14 |
19 |
16 |
82 |
9 |
35.7 |
M12 |
SA206--20G |
P206 |
1.4 |
17 |
21 |
| SAP207--20G |
1--1/4 |
-- |
47.6 |
167 |
12 |
48 |
15 |
19 |
17 |
92 |
9.5 |
38.9 |
M12 |
SA207--20G |
P207 |
1.68 |
17 |
21 |
| SAP207--21G |
1--5/16 |
-- |
47.6 |
167 |
126 |
48 |
15 |
| | | | | | |
