TR Markalı Köprü Tipi Yataklar |
| SBLP200 |
|
| Unit No. |
Shaft Dia. |

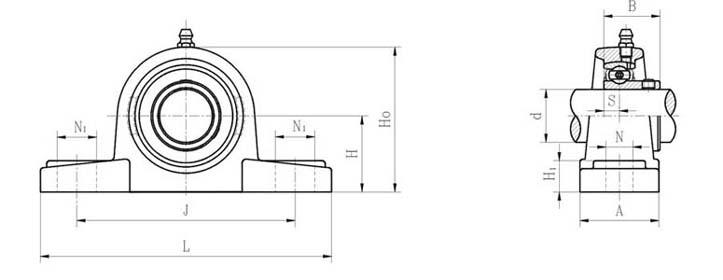

Dimensions(mm) |
Bolt Size |
Bearing No. |
Housing No. |
Mass(kg) |
| d |
H |
L |
J |
A |
H0 |
N |
N1 |
H1 |
S |
B |
| (in.) |
(mm) |
| SBLP201G |
-- |
12 |
30.2 |
114 |
87 |
25 |
57 |
11 |
16 |
12 |
6 |
22 |
M10 |
SB201G |
LP203 |
0.36 |
| SBLP201-8G |
1/2 |
-- |
30.2 |
114 |
87 |
25 |
57 |
11 |
16 |
12 |
6 |
22 |
M10 |
SB201-8G |
LP203 |
0.36 |
| SBLP202G |
-- |
15 |
30.2 |
114 |
87 |
25 |
57 |
11 |
16 |
12 |
6 |
22 |
M10 |
SB202G |
LP203 |
0.36 |
| SBLP202-10G |
5/8 |
-- |
30.2 |
114 |
87 |
25 |
57 |
11 |
16 |
12 |
6 |
22 |
M10 |
SB202-10G |
LP203 |
0.36 |
| SBLP203G |
-- |
17 |
30.2 |
114 |
87 |
25 |
57 |
11 |
16 |
12 |
6 |
22 |
M10 |
SB203G |
LP203 |
0.34 |
| SBLP203-11G |
11/16 |
-- |
30.2 |
114 |
87 |
25 |
57 |
11 |
16 |
12 |
6 |
22 |
M10 |
SB203-11G |
LP203 |
0.34 |
| SBLP204-12G |
3/4 |
-- |
33.3 |
125 |
97 |
27 |
63.8 |
11.5 |
16 |
14 |
7 |
25 |
M10 |
SB204-12G |
LP204 |
0.5 |
| SBLP204-G |
-- |
20 |
33.3 |
125 |
97 |
27 |
63.8 |
11.5 |
16 |
14 |
7 |
25 |
M10 |
SB204 |
LP204 |
0.5 |
| SBLP205-14G |
7/8 |
-- |
36.5 |
130 |
100 |
29 |
69.5 |
11.5 |
16 |
15 |
7.5 |
27 |
M10 |
SB205-14G |
LP205 |
0.6 |
| SBLP205-15G |
15/16 |
-- |
36.5 |
130 |
100 |
29 |
69.5 |
11.5 |
16 |
15 |
7.5 |
27 |
M10 |
SB205-15G |
LP205 |
0.6 |
| SBLP05G |
-- |
25 |
36.5 |
130 |
100 |
29 |
69.5 |
11.5 |
16 |
15 |
7.5 |
27 |
M10 |
SB205G |
LP205 |
0.6 |
| SBLP205-18G |
1 |
-- |
36.5 |
130 |
100 |
29 |
69.5 |
11.5 |
16 |
15 |
7.5 |
27 |
M10 |
SB05-16G |
LP205 |
0.6 |
| SBLP206-18G |
1-1/8 |
-- |
42.9 |
156 |
121 |
33 |
82 |
14 |
21 |
16 |
8 |
30 |
M12 |
SB206-18G |
LP206 |
0.7 |
| SBLP206G |
-- |
30 |
42.9 |
156 |
121 |
33 |
82 |
14 |
21 |
16 |
8 |
30 |
M12 |
SB206G |
LP206 |
0.7 |
| SBLP206-19G |
1-3/16 |
-- |
42.9 |
156 |
121 |
33 |
82 |
14 |
21 |
16 |
8 |
30 |
M12 |
SB206-19G |
LP206 |
0.7 |
| SBLP206-20G |
1-1/4 |
-- |
42.9 |
156 |
121 |
33 |
82 |
14 |
21 |
16 |
8 |
30 |
M12 |
SB206-20G |
LP206 |
0.7 |
| SBLP207-20G |
1-1/4 |
-- |
47.6 |
165 |
127 |
35 |
93 |
14 |
21 |
16 |
8.5 |
32 |
M12 |
SB207-20G |
LP207 |
0.95 |
| SBLP207-21G |
1-5/16 |
-- |
47.6 |
165 |
127 |
35 |
93 |
14 |
21 |
16 |
8.5 |
32 |
M12 |
SB207-21G |
LP207 |
0.95 |
| SBLP207-22G |
1-3/8 |
-- |
47.6 |
165 |
127 |
35 |
93 |
14 |
21 |
16 |
8.5 |
32 |
M12 |
SB207-22G |
LP207 |
0.95 |
| SBLP207G |
-- |
35 |
47.6 |
165 |
127 |
35 |
93 |
14 |
21 |
16 |
8.5 |
32 |
M12 |
SB207G |
LP207 |
0.95 |
| SBLP207-23G |
1-7/16 |
-- |
47.6 |
165 |
127 |
35 |
93 |
14 |
21 |
16 |
8.5 |
32 |
M12 |
SB207-23G |
LP207 |
0.95 |
|
|
|
|
|
|
|
|
