SBC Linear Rail System / SBG-SLL |
|
| Reference
|

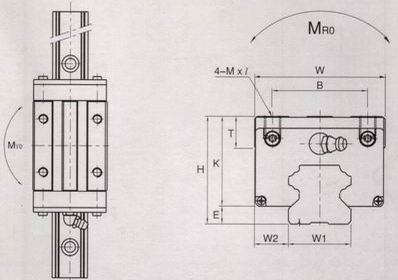

Mounting
Dimension |
Block
Dimensions |
Height
H |
E |
W2 |
Width
W |
Length |
Mounting
table hole |
L1 |
K |
T |
Nipple |
| Bxi |
Mx/ |
Mounting
hole |
Ti |
N |
SBG
20 SLL |
30 |
3.5 |
12 |
44 |
93.2 |
32x50 |
M5x8 |
66.8 |
26.5 |
8 |
M6XO.75 |
7 |
9.8 |
SBG
25 SLL |
40 |
5 |
12.5 |
44 |
106.4 |
35X50 |
M6x8 |
79 |
35 |
12 |
M6XO.75 |
10.5 |
9.8 |
SBG
30 SLL |
45 |
6.5 |
16 |
60 |
120.5 |
40x60 |
M8XİO |
92.9 |
38,5 |
12 |
M6x0.75 |
11.5 |
10.7 |
SBG
35 SLL |
55 |
7.5 |
18 |
70 |
135 |
50x72 |
M8xi2 |
105.9 |
47.5 |
15 |
M6XO.75 |
16.5 |
10.7 |
SBG
45 SLL |
70 |
7.3 |
20.5 |
86 |
168 |
60x80 |
M10xl7 |
130 |
47.5 |
15 |
PT
1/8 |
20.5 |
11 |
SBG
55 SLL |
80 |
9.8 |
23.5 |
100 |
198 |
60x80 |
M12xl8 |
130 |
70.2 |
18 |
PT
1s/8 |
22 |
11 |
SBG
65 SLL |
90 |
17.5 |
31.5 |
126 |
249 |
60x80 |
M16*20 |
207 |
72.5 |
23 |
PT
1/8 |
15 |
11 |
|
 |

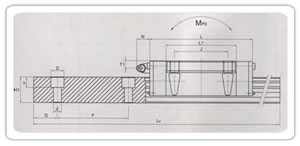

| Rail
Size |
Load
capacity |
Weight |
Reference |
Width
W1 |
Height
H1 |
Pitch
F |
Bolt Hole dxDxh |
G |
Max. length of rail LoMAX |
Dynamic C
(kgf) |
Stationary
Co(kgf) |
Stationary Moment
(kgf-m) |
Bearing (kgf) |
Rail(kgf /
m) |
| Mra |
M»o |
M*> |
| 20 |
17.5 |
60 |
6x9,5x8.5 |
20 |
4,000 |
1725 |
3730 |
29 |
32 |
32 |
0.45 |
2.20 |
SBO
20 SLL |
| 23 |
21.8 |
60 |
7X11 X9 |
20 |
4,000 |
2517 |
4905 |
44 |
50 |
49 |
0.73 |
3.10 |
SBG
25 SLL |
| 28 |
25 |
80 |
9X14X12 |
20 |
4,000 |
3602 |
6929 |
75 |
81 |
80 |
1.28 |
4.45 |
SBG
30 SLL |
34 |
29 |
80 |
9x14x12 |
20 |
4,000 |
4701 |
9225 |
126 |
133 |
131 |
2.12 |
6.40 |
SBG
35 SLL |
45 |
38 |
105 |
14 X 20
x 17 |
22.5 |
4,000 |
7714 |
9225 |
250 |
238 |
235 |
3.75 |
11.25 |
SBG
45 SLL |
53 |
45 |
120 |
16
x 23 x 20 |
30 |
4,000 |
11413 |
20068 |
427 |
413 |
405 |
5.68 |
15.25 |
SBG
55 SLL |
| 63 |
58.5 |
150 |
18X26X22 |
35 |
4,000 |
19300 |
32700 |
834 |
850 |
830 |
9.40 |
23.90 |
SBG
65
SLL |
|
|
|
|
|
